Basic characteristics

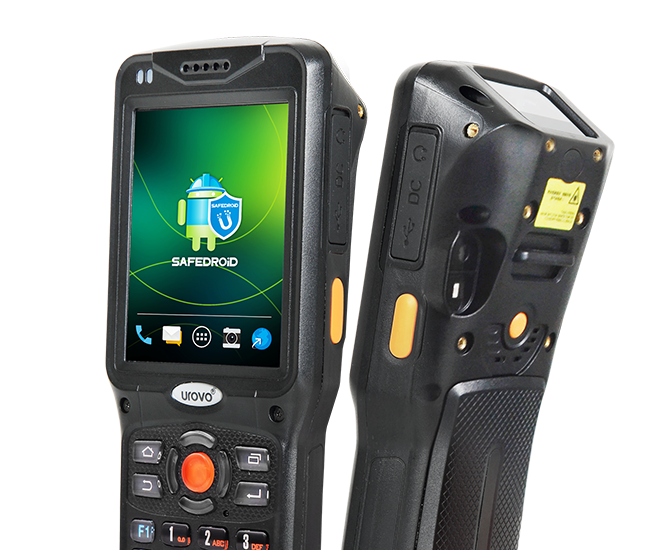

Processor : Quad Core CPU 1.5GHz
O.S : Android 7.1
Memory : RAM 2GB + ROM 16GB
Display : 3.5”VGA (480*640) touch screen
Battery : 4500mAh (operation≧10 hours,Charging less than 4 hours)

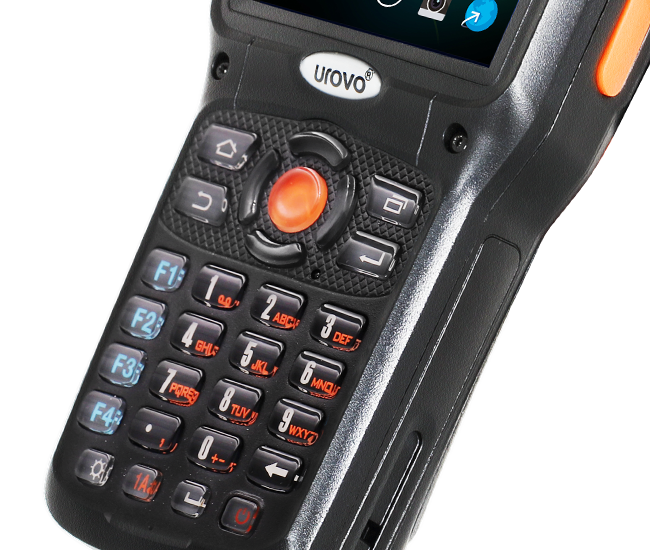

Buttons : 33 Buttons: Number/Alphabet keyboard, Direction button, Scan, Power, Backspace, Space, HOME, Menu, Back, Reset button etc.
SIM Card Slot : 2 micro SIM
Expansion slot : maximum 128GB micro SD card
Interface : Mini USB port, 3.5mm audio jack, POGO pin, DC jack
Dimmension : 192mm×73.8mm×30mm
Weight : 385g (including battery)
Audio : Speaker

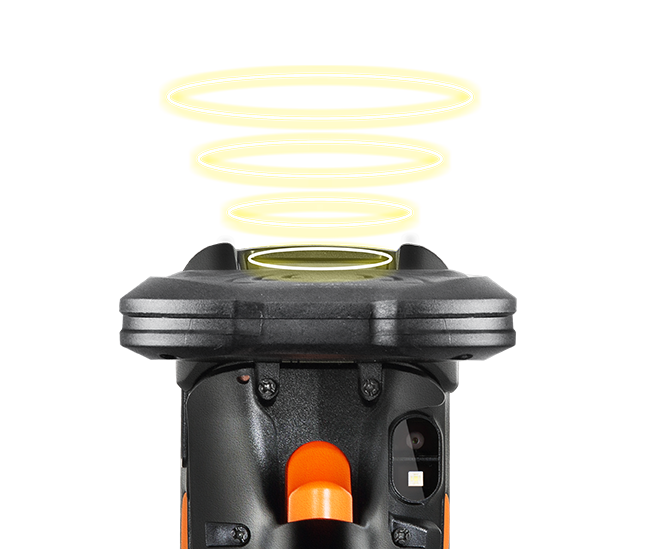

Data Capture
Scanning : 1/2D imager(Zebra/Honeywell scan engine)
Rear camera : 5MP
Wireless& Communication
4G : FDD-LTE B1/B3/B5/B7/B8、TDD-LTE B38/B39/B40/41
3G : WCDMA(B1/B2/B5/B8)、TD-SCDMA(B34/B39)、CDMA2000/EVDO
2G : GSM/EDGE/GPRS(850/900/1800/1900) CDMA 1x
GPS : Support, and support Glonass,Beidou
WIFI : 2.4G/5G，IEEE 802.11a/b/g/n
Bluetooth : Bluetooth 4.1 + BR/EDR + BLE
RFID

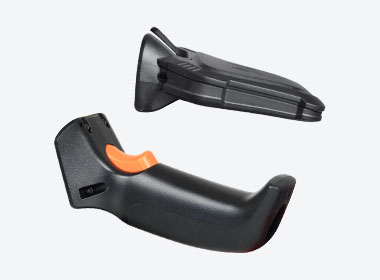

UHF : Module:RRU9810M/RRU9883M;901~928MHz/865~868MHz;EPC C1G2(ISO18000-6C) protocol;Maximum distance: 2-4m/6-8m
HF : ISO15693,ISO14443 Type A,ISO14443 Type B,MIFARE,FeliCa;Support card emulation, peer to peer, reader mode.;Maximum distance: 0-6cm
User environment
Operate : -10~50℃
Storage : -40~70℃
Sealing : IP64
Drop test : 1.5m drop tested
Tumble test : 100 tumbles
