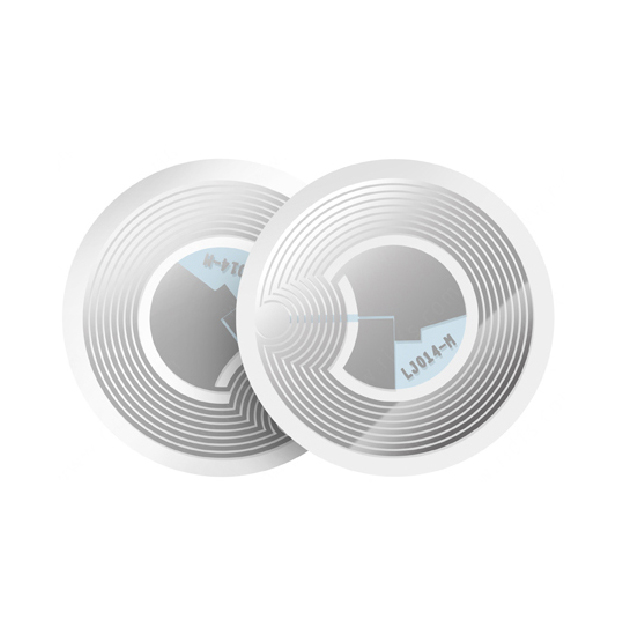

NFC Tag

NFC Tag

Near Field Communication (NFC) is a standards-based short-range wireless connectivity technology  that makes life easier and more convenient for consumers around the world by making it simpler to make transactions , exchange digital content , and connect electronic devices with a touch. NFC is compatible with hundreds of millions of contactless cards and readers already deployed worldwide.

Features

1. Short- range reading ;
2. Support NDEF Format ;
3. Can be read by mobile phone reader .

Parameter

1. Frequency 56Mhz ;
2. Protocol ISO14443A;
3. Chips available mifare S50, FM11RF08 , mifire S70, NTAG203 , mifare Ultralight , \

Mifare Ultralight C, TOPAZ512 , mifare DESFire etc ;

4. Operation temperature -10c – +50c
5. Store temperature -20c – +60c
6. Read range 1-10cm (related to the reader and reading environment) ;
7. R/W Can be read and write
8. Write endurance 100,000 times;
9. Data endurance 10 years.

Surface

Material : Paper, PVC, PET etc;
Printing : offset printing or digital printing;
Crafts : laser numbering , QR code , encode etc;
Size : 85.5*54mm, 45*45mm, 50*50mm, 15*30mm, 25mm, 30mm or Customized.

Application

Widely use for Access control, Consumer electronics, Healthcare, Information collection and exchange, Loyalty and coupons , Payments , Transport , Bluetooth Communication etc.

Packaging

Size : 35mm x 35mm x 0.3mm
Material : 80gsm paper plus wave-absorbing material
Packing : 1000pcs/rollx4 roll/carton
